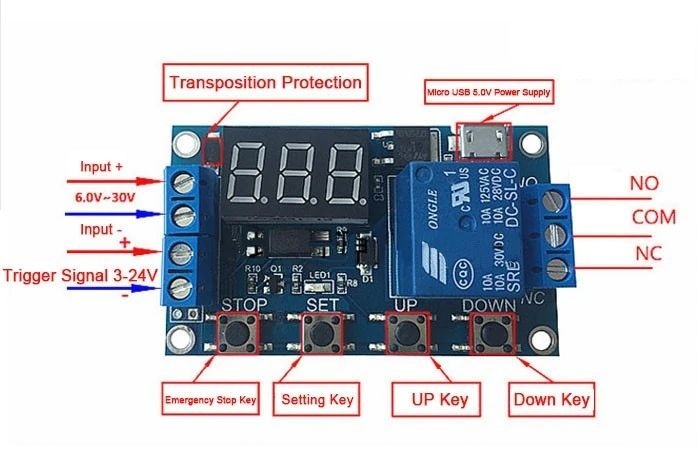

Channel Delay Power-off Relay Module with Cycle Timing Circuit Switch

Product introduction:

1. Operating voltage: 6--30V
2. trigger Signal Source: High Level Trigger (3.0 V-24 V), signal ground and system ground are not common, which can increase anti-interference abilit
   System (short circuit can also connect to a ground common)
3. Output Capacity: cannot have more than DC 30 V 5A AC or 220 V devices 5A
4. optocoupler Isolation: improve the anti-interference ability, after the parameter setting, the memory will be forever

Warning: Relay contact is passive and electricity production; 1 channel has the control function on / off

Operation mode:

P1: After activated signal, power relay on time ON, set; following operation within the OP period:

1) P1.1: signal is reactivated is not effective

2) P1.2: signal is reactivated, start time again

3) P1.3: signal is reactivated, reset; break relay, stop timing

P2: give the trigger signal, the time after switching off relay CL power relay ON time; then timing, switch the relay

P3.1: give the trigger signal after the power relay on time ON, CL shutdown time relay; then operating cycle above cycle gaive signal again, shutdown relay stop timing; cycle times (LOP) can be set

P3.2: after connection. No need to trigger signal, power relay on time ON, CL shutdown time relay; then the operating cycle can be set above timea cycle (LOP)

Q4: keep the function of the signal; If there is no trigger signal, the time will be canceled, relays remain connected; when the signal disappears, timing ON switch the relay; About time, if no signal again, the time is cleared

Time interval:

0.1 s (minimum) ~ 999 min (maximum) continuously adjustable

How the time interval:

In the selection of parameter set interface mode, and on the STOP button to change the time

Xxx. If the comma is in some place, the time interval is s-1 999 s

Xx. X is decimal is ten, the time interval is 0.1s 99.9s-

1. X. X is the comma are all on, the time interval is 1 min-999 min

Parameter Introduction: ON power over time, turn off time CL, LOP cycle times (1-999 times, "---" is unlimited cycle)

How the parameter:

1. First make sure relay operation mode
2. According to the operaiting relay mode, the main interface (power module will flash current mode; standard mode P1.1, please come intot main interface); long press SET key for two seconds and then looen enter selection interface mode; by pressing UP, DOWN key to set the mode
   (P1.1 ~ P4)
3. After selecting the mode, press short SET to the corresponding parameter, then the parameter you want to set will flash
   (ON power in time; CL power off time; LOP cycle times, "---" is unlimited cycle); By UP, DOWN to the parameter value, support long press
   (Increase or decrease quickly) and press lightly (increase or decrease 1 unit); after setting the parameter value by briefly choosing the STOP key decimal; Choose the time interval (corresponding time interval is 0.1 s-999 min); Briefly press SET to the current mode following parameter, the process is the same as above
4. After the setting mode parameter, hold the SET button then hold the current configuration mode will flash, then go back to the main interface; define success parameter
   Main interface: when the relay is not working, it will show "000" (no comma); The operating state relay, the screen has a decimal point

Select Mode Interface: hold the SET key; After setting, long press the SET button back on main interface

Expansion Function Key STOP:

Activate relay mode:

1. NO: PO in power over time, relay can be connected
2. OFF: relay is not allowed to when in the off position
   In short main interface to reach the STOP key and OFF, current state will flash; then back to the main interface
   (This function is a function of sudden stop, 1 key to the relay)

Sleep:

CP sleep mode: within 5 minutes, no operation; Nixie tube will close auto display, and a function program well

The D-Normal Mode: Nixie Tube Show Ever

Note: hold STOP button for 2 seconds can achieve change from CP to Od; current state will flash and then back to the main interface
