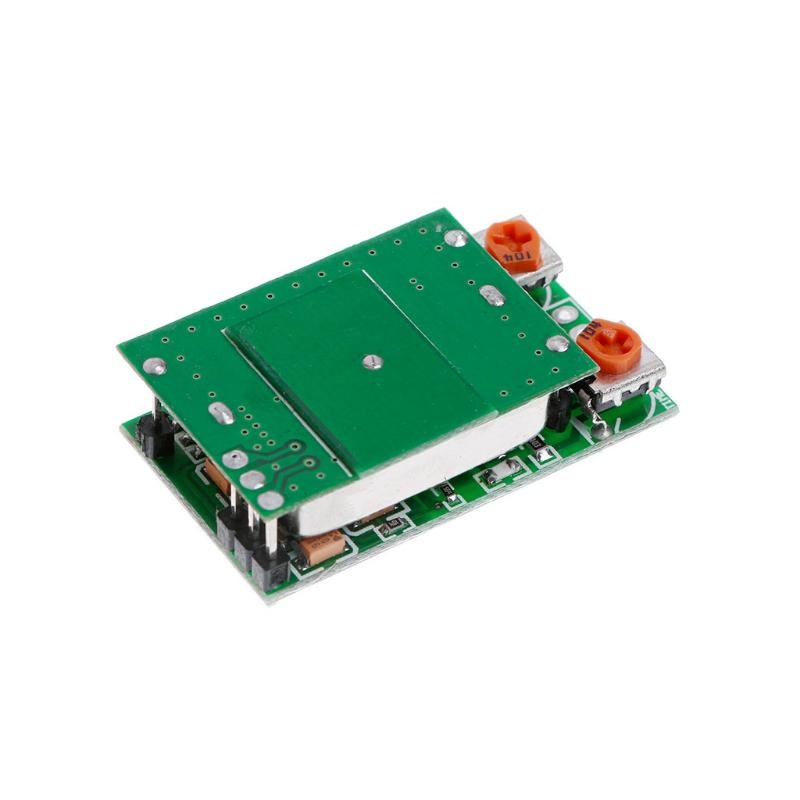

Model: HFS-DC06
frequency: 5.8GHz
waveband: ISM band
Size: 39*22*11mm
Input voltage: DC 5 V
Minimum Input Current: 30mA
Output Type: High signal
Connection: VCC connects to power positive, GND connects to negative; GND and OUT connection with level signal output
Installation Height: 2-6 m
Sensing Distance: right forward 12 m
Sensing Angle: right forward cone 360 degrees
Sensing Time: 2s

brands:
1. Use more than 30mA current power supply to this module, and voltage must be stable
