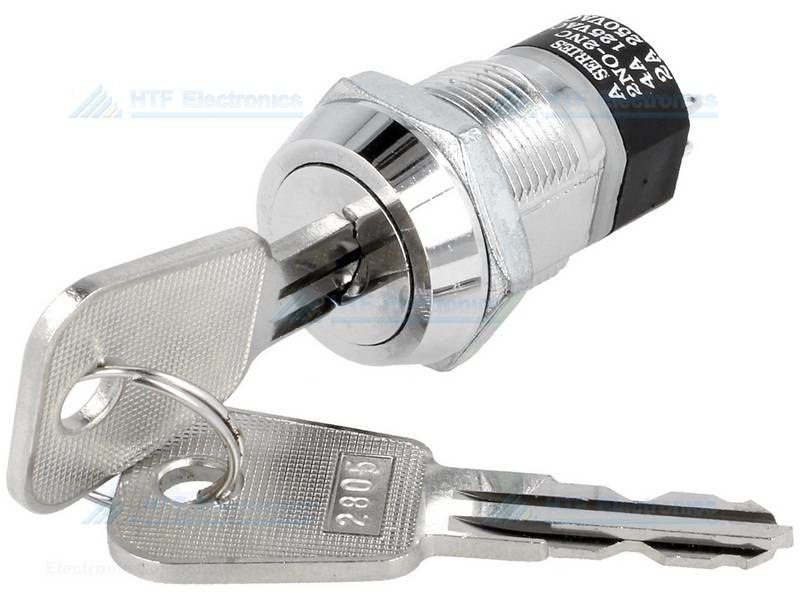

HIGHLY Key switch 2 positions DPST OFF - ON

Key switch 2 positions DPST OFF - ON

Producer	HIGHLY
Switch type	ignition switch
Number of stable positions	2 positions
Switching method (the position in brackets is the current position)	OFF-ON
Contact configuration	DPST
Number of all positions	2
Dimensions mounting opening	Ø19mm
Corpus material	zinc alloy
Type of key	symmetrical
Key shape	flat
AC contacts rating @R (with resistance load)	4A / 125VAC
Mechanical rotation angle	90 °
Number of outputs	4
Total length	37 mm

Properties limit switches:
