MCP2515 CAN-Bus Shield for Arduino
- Article number:
- AR0175
- SKU number:
- Arduino Krat 25
- Availability:
- In stock (5)
- Delivery time:
- 1-3 dagen
€12,00
Incl. tax

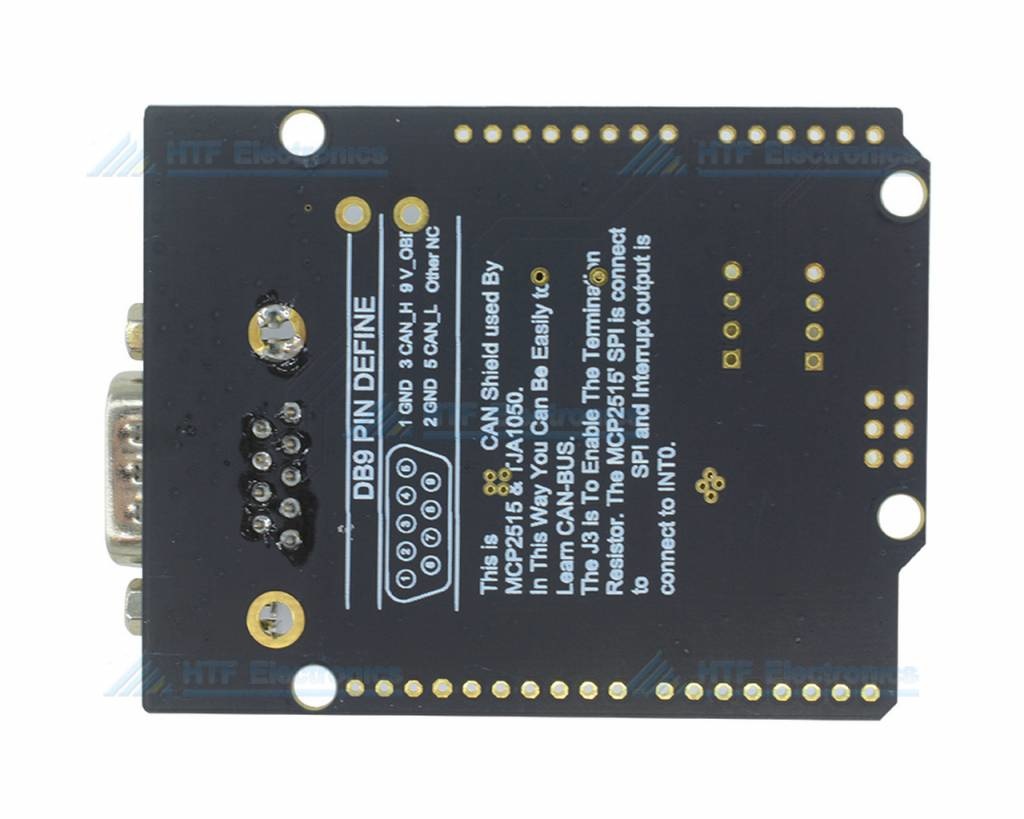

MCP2515 CAN-Bus Shield for Arduino
CAN Controller Area Network is an accreditation, is the ISO international standardization or serial communication protocol. CAN's performance and reliability has been recognized, and is widely used in industrial automation, marine, medical equipment, industrial equipment and other aspects.
Compared with the traditional 485 bus, CAN bus has many advantages. The Arduino CAN Shield as using MCP2515 CAN controller, TJA1050 CAN transceiver as (similar to 485 in the MAX485 transceiver chip), and provide detailed information and reference library Arduino platform, can be installed directly on the Arduino platform CAN communication between the plates, for those who want self-CAN bus students or engineers, is a good choice.
Compared with the traditional 485 bus, CAN bus has many advantages. The Arduino CAN Shield as using MCP2515 CAN controller, TJA1050 CAN transceiver as (similar to 485 in the MAX485 transceiver chip), and provide detailed information and reference library Arduino platform, can be installed directly on the Arduino platform CAN communication between the plates, for those who want self-CAN bus students or engineers, is a good choice.
fully supports CAN2.0 protocol specification, the maximum transfer rate or 1Mb / s 2 an indicator LED
2 user buttons
power, receive, send, interrupt indication LED
1 an industry standard SUB-D connector
external expansion UART and IIC interface
high-speed SPI interface speeds up to 10MHz
Operating voltage: 4.8V - 5.2V
Working current: about 30 mA
Size: 65 × 53mm
Net weight: 55 g
2 user buttons
power, receive, send, interrupt indication LED
1 an industry standard SUB-D connector
external expansion UART and IIC interface
high-speed SPI interface speeds up to 10MHz
Operating voltage: 4.8V - 5.2V
Working current: about 30 mA
Size: 65 × 53mm
Net weight: 55 g
Package include ：

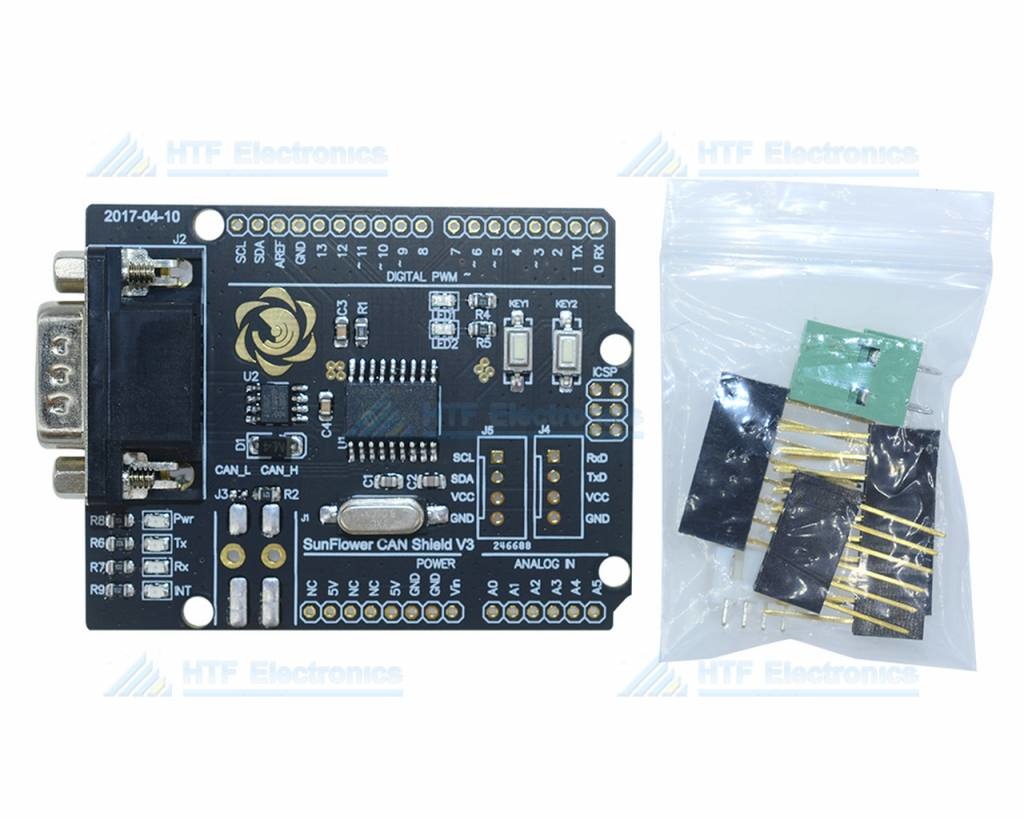

1 x MCP2515 Can Bus shiled board module arduino-Compatible new
