Battery capacity meter for accurately measuring your battery

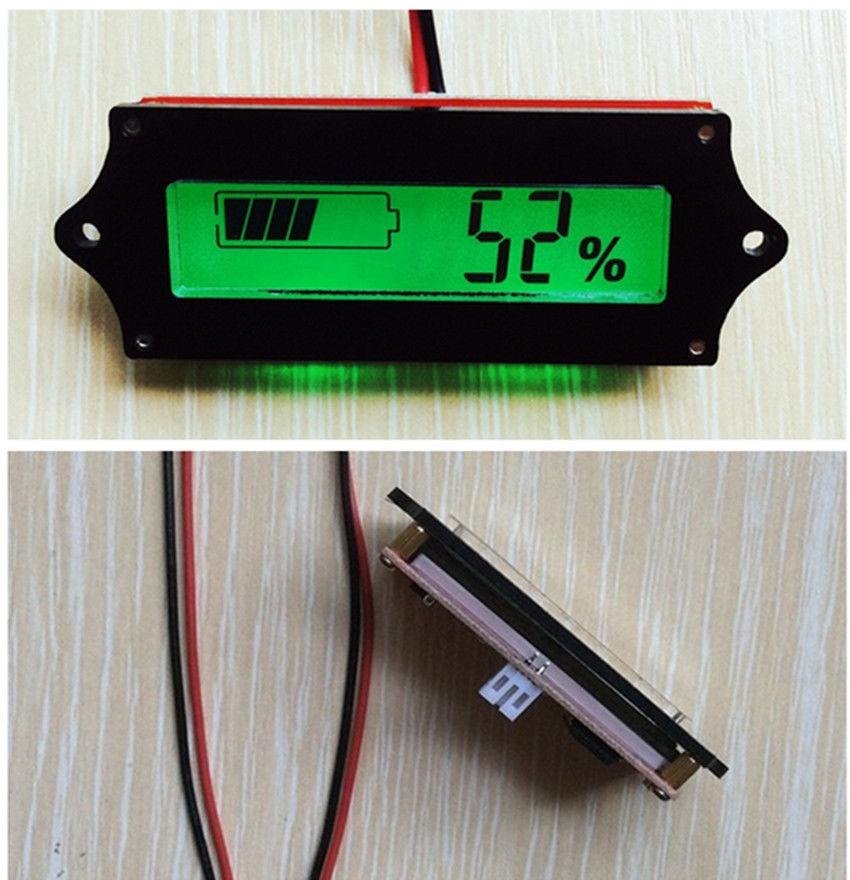

If you use solar panels with a charge controller without status display such as voltage and percentage, then this battery capacity meter is an ideal tool to see how your battery is doing. The meter has a green background lighting that is always active so that you can see the status even in the dark.

Specifications:

Backlight is On continuously
Crystal Shell LCD Power Measurement
Display screen size: 36 x 12 mm, thickness 10 mm
Suitable for: Lithium Batteries, and Lead Batteries
Working power: 5 to 15 mA
Working voltage: 6 to 12 volts
Dimensions: 48 x 25 mm Thickness 10 mm
Energy Resolution: 1%
Voltmeter accuracy: 1%
Terpertaure range: -20 to 60 degrees Celsius
Power cable included
The common thread is +
Black Thread is -
External Dimensions: 64 mm x 25 mm x 12 mm
Hole dimensions: 43 mm x 11.3 mm

This battery capacity meter has a small switch on the back with which you can change the display of the meter. The switch has 3 functions, namely: Voltage measurement, Percentage measurement and switching off. some users remove the switch from the module and place their own switch next to the meter so that they can switch between the status without having to press the switch at the rear. After all, if the module is built in, you can no longer place a switch externally at the rear than a good option.

The own energy consumption of this meter is very low, with only 15mA the meter can be called energy efficient

This battery capacity meter is suitable for this charge controller , among other things , but if you are a camper on a campsite with, for example, a tent and you use a large battery, then this battery capacity meter is an extremely suitable tool.
