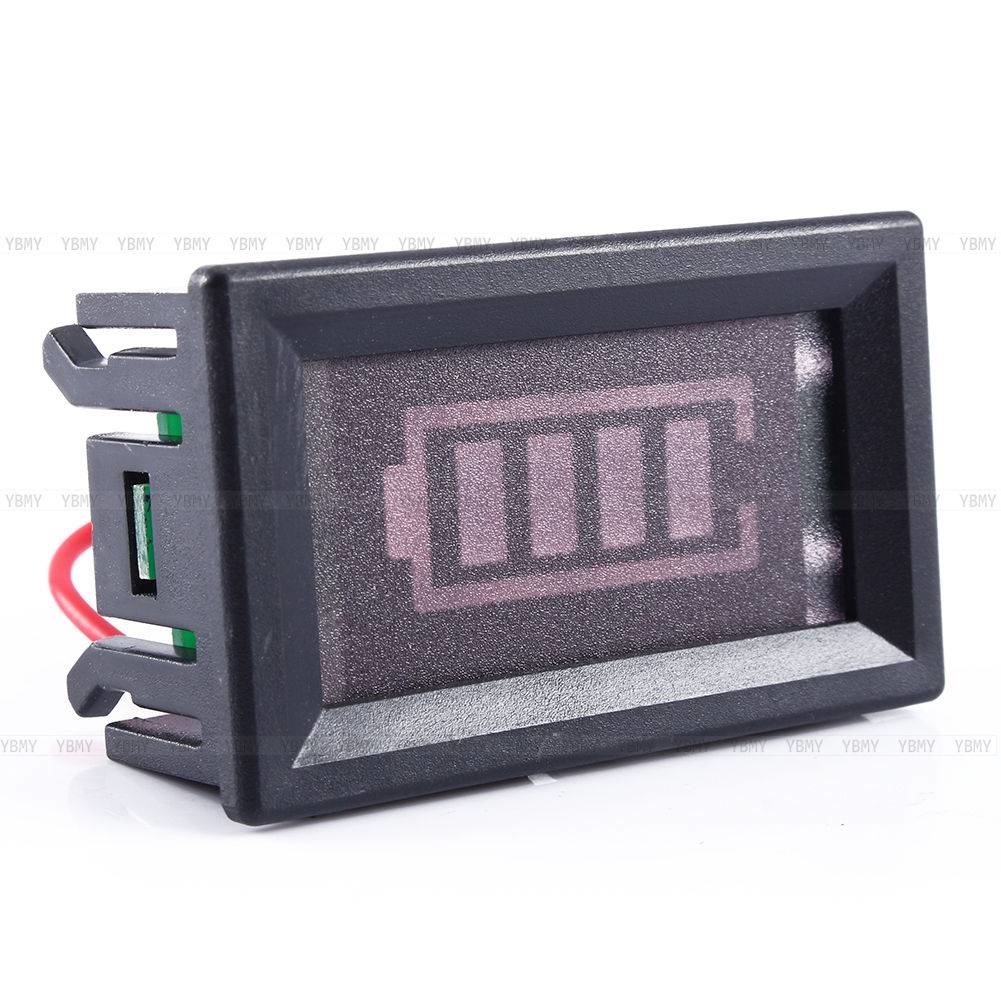

Battery Monitoring Volt Meters, for 6 to 12 volt batteries, low self-consumption: - Small size - Clear indication - Intelligent voltage calculation - Stand Alone Module
This Battery monitoring volt meter is simple in design.
The full meter has a status sign of a battery with dashes in it
The lines can be read when light up, so you can see at a glance how your battery is doing.
Position:
Easy stand alone module
Display mode: Battery + Percentage
Black wire is -
Red Thread is +
Use: Connect the meter to the PLus and the Min of the battery and the Display shows how full the battery is. This is done by measuring the voltage and then calculating the remaining power
Battery capacity display parameters:
Battery voltage: 11.2 Volt1 Dash
Battery Voltage: 12 Volt 2 Stripes
Battery Voltage: 12.5 Volt 3 Stripes
Battery Voltage: 13.3 Volt 4 Stripes
When the battery voltage is lower than 11.2 Volts it means that the battery is completely empty, all 4 lines are off and the battery must be charged immediately.
The battery monitoring volt meter is small in size and easy to install.
