Mini voltmeter blue 2 wires

Measures voltages of 3 -30V DC accurately

Automatic decimal point

- 2-wire
- 3 digit
- 0.36 "Inch
- Emitter color: Blue
- Renewal Freq: 500ms
- Measuring range: 3 - 30 V DC
- Automatic decimal point 00.1V - 0.01V
- Consumption: 15mA max.
- 30 mm x 10 mm x 8 mm

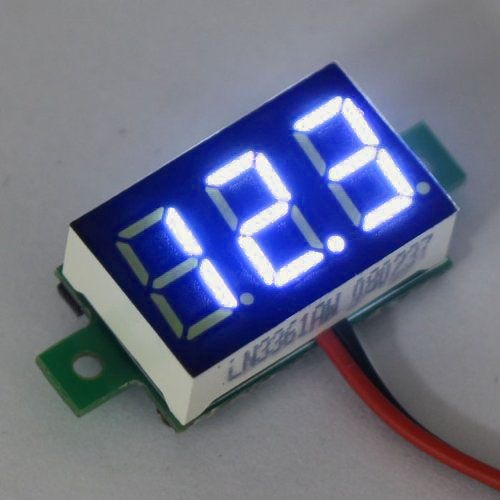

This small voltmeter with blue LED 7-segment display is suitable for measuring voltages from 3 volts dc to 30 volts DC.
The meter with only 2 connection wires, a plus and a minus that you can connect directly to a power source or a measuring point is sufficient to measure the voltage.

The voltmeter is already set correctly, but if necessary the voltmeter can be adjusted with a small potentiometer on the back.
This potmeters is meant for calibration.

The meter itself uses little energy, with only 15mA the meter is energy efficient, and despite the low consumption, the brightness of the meter is just right. Also the speed at which the meter displays its values is fast with 500ms you hardly notice that there is a slight delay.

The decimal point of this voltmeter is placed automatically and the size of the 7 segment display is 0.36 inch. if you want a smaller size because it fits better in your project then we also have a smaller size mini voltmeter blue, which you can find here .

The dimensions of this mini voltmeter blue are as follows: 30 mm (3 cm) long x 10 mm (1 cm) wide x 8 mm (0.8 cm) high

There are many applications for this voltmeter, but wherever you use the meter, this mini voltmeter blue is exactly what you need.
