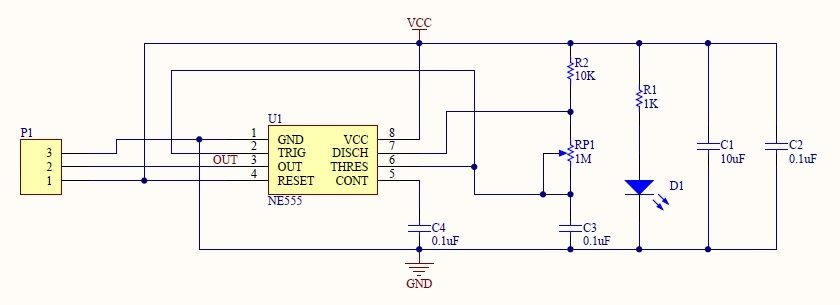

NE555 Mini frequency pulse generator

1 - Work IC: NE555
2 - 1 channel output, The duty cycle output: Block wave +/- 50%
3 - onboard variable resistance, The trimmer can be used to adjust the square wave.
4 - Supply voltage: 5 to 12V DC

The frequency range of the NE555 is 500kHz

The Module can be used to generate a simple Block wave and can be used as a clock generator for various applications

The Trimmer on the module to adjust the clock pulse

Download the NE555 Datasheet here
