Type of relay	electromagnetic

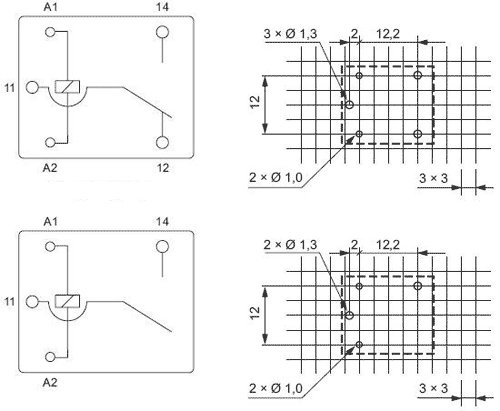

Contacts configuration	SPDT
Rated coil voltage	9V DC
Contact current max.	10A
Switched voltage	max. 30V DC, max. 277V AC
Relay variant	miniature
Mounting	PCB
Coil resistance	225Ω
Operate time	10ms

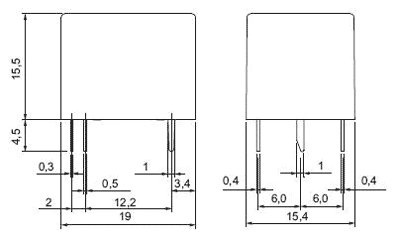

Body dimensions	19x15.4x15.5mm
Release time	5ms
Coil power consumption	360mW
IP rating	IP64
Operating temperature	-30...55°C
Relay series	RM50
Terminal pitch	2mm
OEM number	2611654
