Print relay 3V 10A

Relay type	electromagnetic

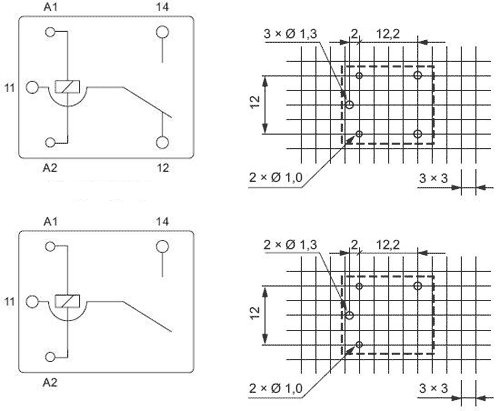

Contact configuration	SPDT
Nominal coil voltage	3VDC
Load capacity AC contacts @R (with resistance load)	10A / 240VAC
Load capacity DC contacts @R (with resistance load)	15A / 24VDC
Max. power contacts	15A
Switching voltage	max 277V AC, max 24V DC
Relay version	miniature
Edit	PCB
Coil resistance	25Ω
Min. coil tension	2.25V DC
Max. coil tension	3.9V DC
Operating time	10ms

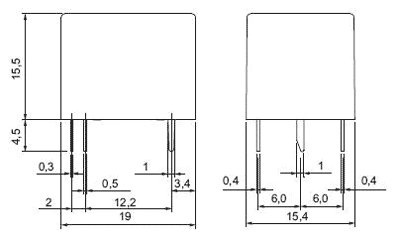

Outside dimensions	19 x 15.4 x 15.5mm
Fallback time	5ms
Power consumption via coil	360mW
Density class	IP64
Working temperature	-30...55°C
Relay series	RM50
Resistance contacts	100mΩ
Contact material	_AgSnO2
Connection grid	2mm
