Raindrop meter sensor Analog / Digital

Raindrop meter sensor measures the amount of water on the surface. Has 2 outputs analog (A0) and digital (D0). The analog output shows the amount of water that is on the pcb. 0 for very wet and 1023 for dry.
The digital output gives a 0 or 1 and this threshold value can be set with the potentiometer. If the value is below the set threshold, if the output is 1, the value above it is then the output is 0.

Raindrop meter sensor specifications:
- Operates on: 3.3V - 5V.
- Based on the: LM393 chip.
- Adjustable via potentiometer.
- 2 indication LEDs.
- TTL level output capacity: 100MA.

Dimensions:
- Raindrop sensor board: 54x40mm.
- Control board: 30x16mm.

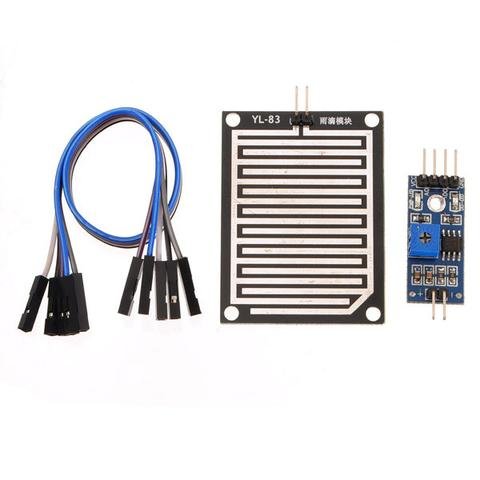

Delivery includes:
- Raindrop sensor board.
