Temperature Controller STC-3000, Including Sensor
- Article number:
- GRSP01026
- SKU number:
- GS12
- Availability:
- In stock (2)
- Delivery time:
- 1-3 dagen
€22,50
Incl. tax

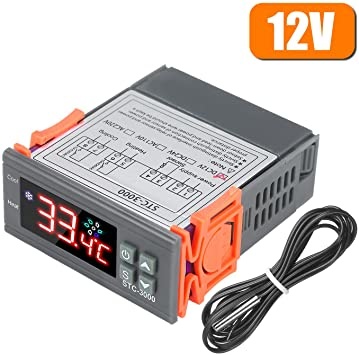

Temperature Controller STC-3000 Including temperature sensor 10K - Measuring range: -59 to 110 degrees Celsius - Supply voltage: 12 Volt DC - Including sensor - Sensitivity: 0.1%

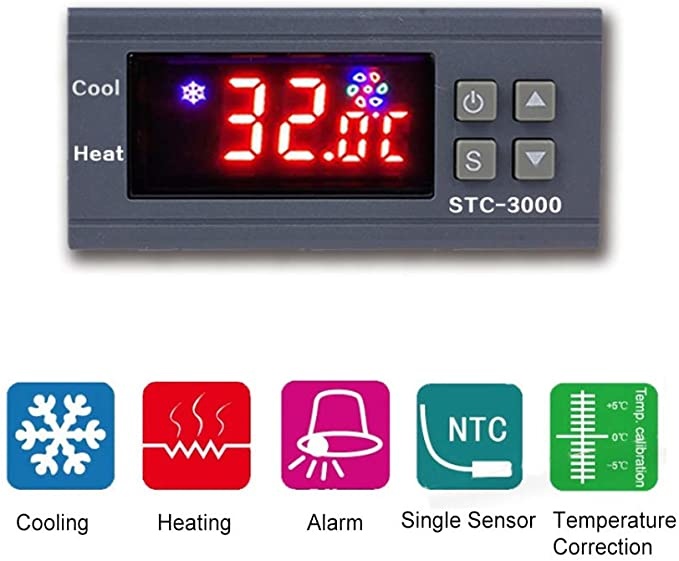

STC-3000
Switches the module between cool and heat;
Control temperature by the temperature setting value and the difference value;
Temperature calibration;
Refrigeration equipment output delay protection;
Alarm when temperature exceeds temperature limit or when sensor error.
Specification
Front panel size: 75x34.5 (mm)
Mounting size: 71x29 (mm)
Product size: 75x34.5x85 (mm)
Sensor length: 1 meter (including the probe)
Technical Parameters
Temperature measurement range: -50 ~ 99 Degrees Celsius
Accuracy: 0.1 Degrees Celsius
Sensor error delay: 1 minute
Power supply: DC 12V, 50 / 60Hz
Energy consumption: <3w
Sensor: NTC sensor (IPC)
Relay contact capacity: Cool (10A / 220VAC); Heat (10A / 220VAC)
Ambient temperature: 0-60 Degrees Celsius
Storage temperature: -30-75 Degrees Celsius
Relative humidity: 20-85% (No condensate)
