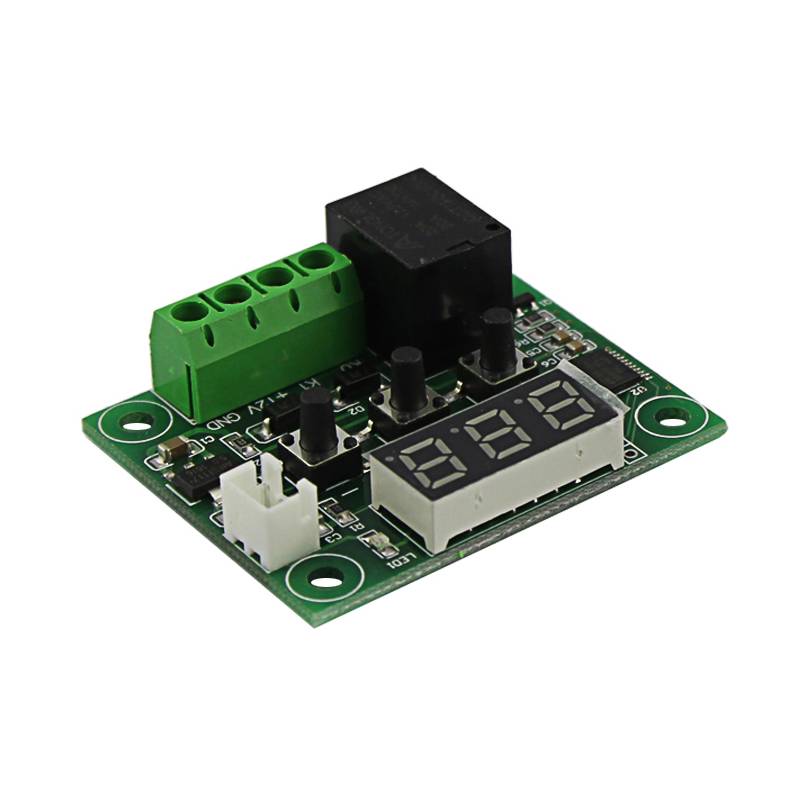

W1209 Mini thermostat temperature Controller
Specification: 1.Supply voltage: DC 12V
2.Static current: 35MA, attract current 65MA
3.Output voltage: DC 12V
4.Output power: 10A relay

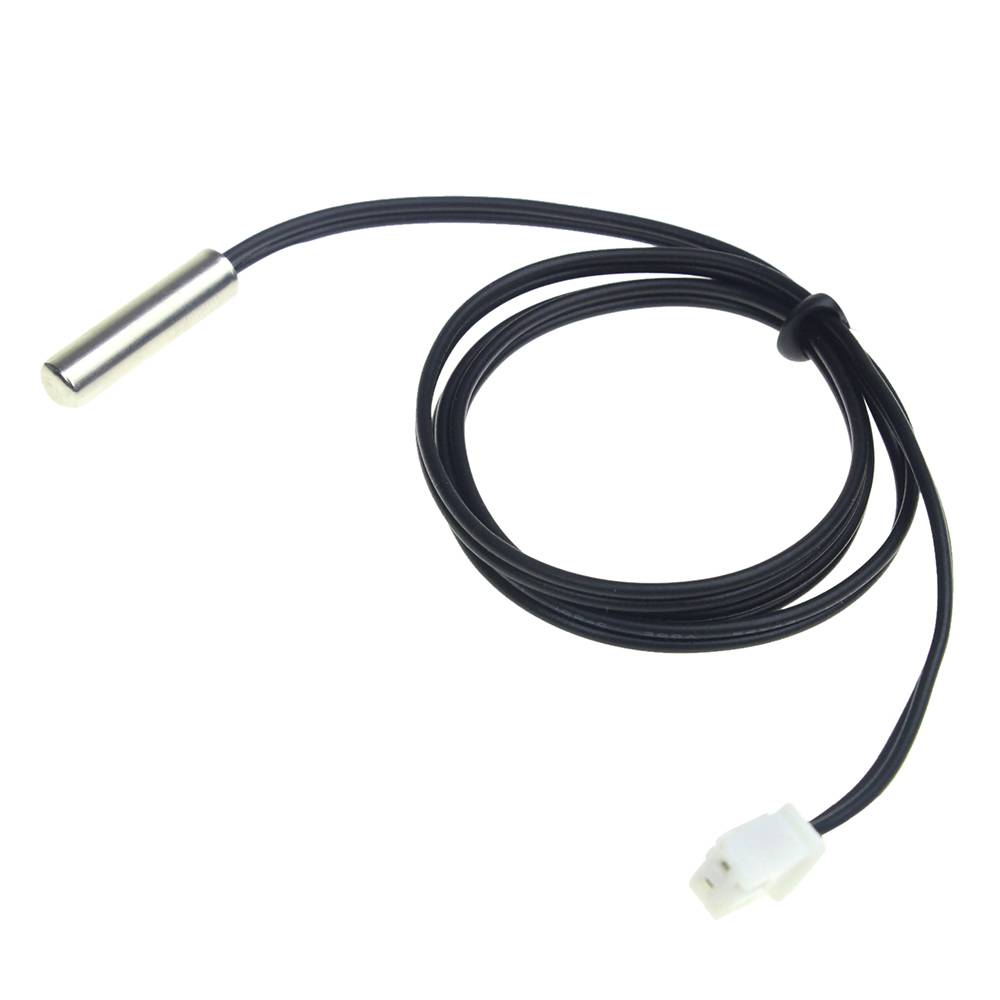

5.Measurement input: NTC (10K 0.5%) Waterproof Sensor
6. Environmental requirements: -10 ~ 60 ° C, Humidity 20% ~ 85%
7.Dimensions: 48 x 40 mm
8. Temperature range: -50 ~ + 110 ° C
9.Control accuracy: 0.1 ° C
10. Hysteresis accuracy: 0.1 ° C
11.Refresh rate: 0.5S
12.High temperature protection: 0 ~ 110 ° C
13. Resolution: the resolution is -9.9 ~ 99.9, other temperature segment is 1 ° C
