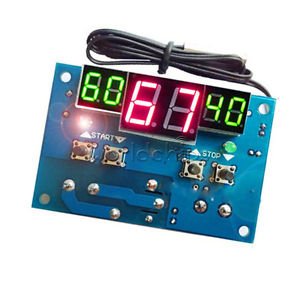

W1401 intelligent thermostat with NTC sensor

Description:

• Temperature range: -9-99 centigrade
• Accuracy: 1 centigrade
• Control accuracy: 1 centigrade
• Setting range: -9-99 centigrade
• Refresh rate: 0.5 s
• Input power: DC12V
• Output: relay output, capacity 220 v 10A / 12 v 10A
• Environmental requirements: -10-60 centigrade
• Humidity: 20% -85%
• Size: 78x51mm
• Temperature sensor: NTC (3950-10 k 1%)
• Application to Different spatial temperature control, Water temperature control, Incubators, etc

Lighting, digital display

Red start Indicator:

• START (red) light, which means the relay is closed, the device starts working

Green stop light:

• Stop (green) light is on, which means that the relay is disconnected, the device stops working

Digital Tube

• Middle red LED display for the current detection temperature, the left green digital display tube as set start temperature, the right side of the green digital display for the set stop temperature.
