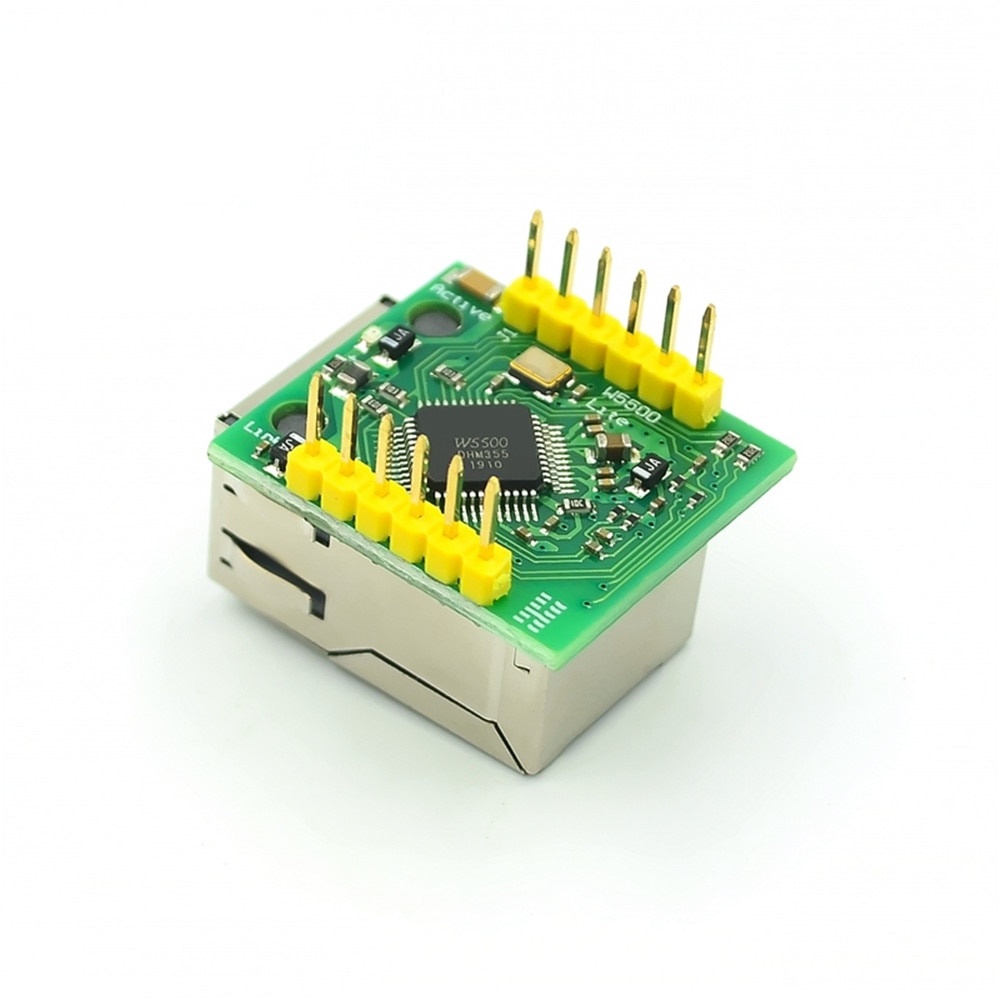

W5500 Ethernet Module SPI Interface USR-ES1

The W5500 is a full-featured TCP/IP embedded Ethernet controller that provides a simpler Internet connectivity solution for embedded systems. The hardware logic ports are used to implement the transport layer and network layer of the TCP/IP protocol stack (eg, TCP). , UDP, ICMP, IPv4, ARP, IGMP, PPPoE and other protocols), and integrated data link layer, physical layer, and 32K bytes of on-chip RAM as a data transceiving buffer. The host computer main control chip only needs to undertake the processing task of the TCP/IP application layer control information. As a result, the workload of the host computer for data copying, protocol processing and interrupt processing is greatly saved, and system utilization and reliability are improved.

Specification

1 power supply mode: 3.3V external power supply, current must be greater than 200mA
2 control interface form: 3.3V TTL level, SPI interface; 2 * single row pin

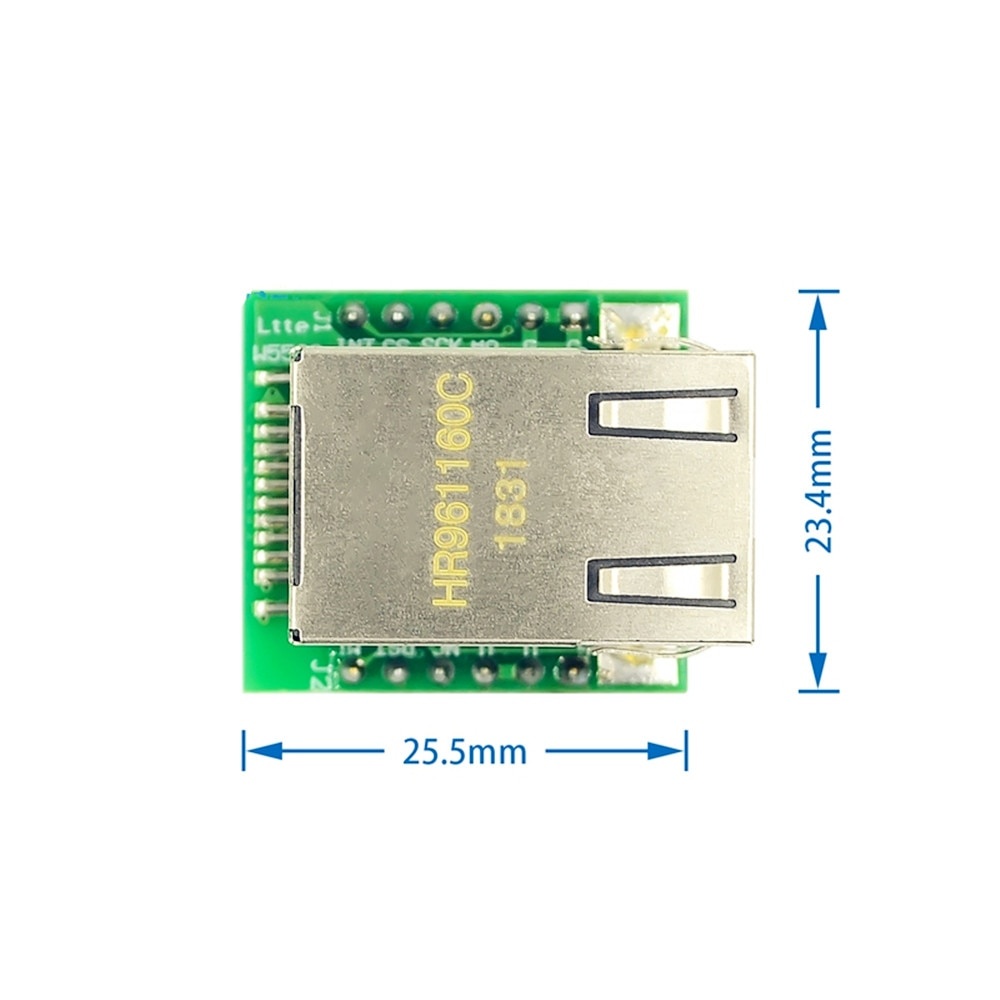

3 PCB size (MM): 23*25mm
4 mechanical dimensions (length * width * height): 28.5 * 23 * 24mm

Feature

1. 80MHz High Speed SPI Interface
2. Built-in hardware TCPIP protocol stack, users need almost no knowledge of complex network protocols
3. Support up to 8 Socket connections
4. Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol
5. Integrated data link layer, physical layer
6. support power down wake up
7. Support high-speed serial peripheral interface (SPI mode 0~3)
8. Internal 32K byte send and receive buffer
9. Embedded 10BaseT/100BaseTX Ethernet Physical Layer (PHY)
10. Support auto-negotiation (10/100-based full/half duplex)
11. IP fragmentation is not supported
12. 3.3V working voltage, I/O signal port 5V withstand voltage
13. LED status display (full duplex / half duplex, network connection, network speed, active status) 14. Ultra-small pin package for easy embedded applications
15. Provide C application routines
