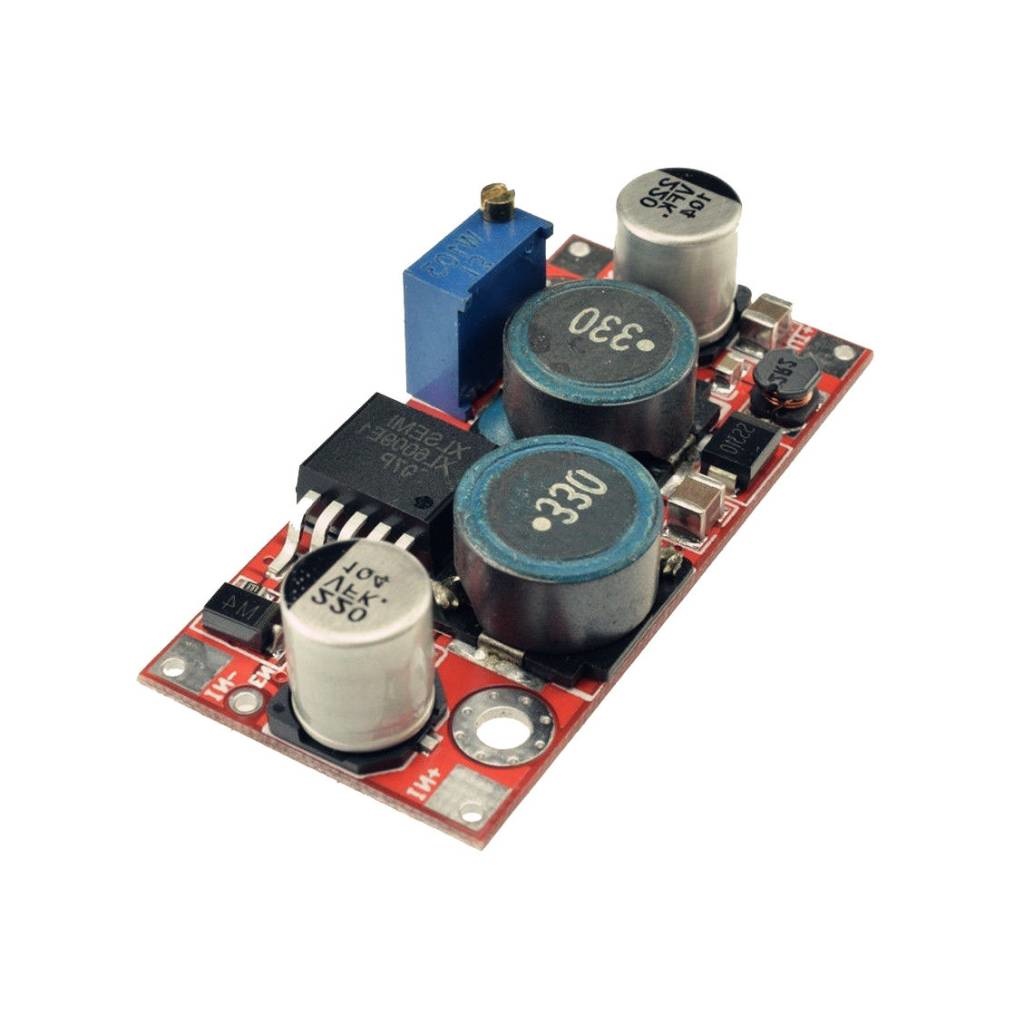

XL6009 DC-DC Step up and Down Module 3A 20W

Description:

A high-quality step up and down module in 1 unit. This module is adjustable and ensures that a set voltage remains stable regardless of the fluctuating input. For example, if you set a voltage for a LED strip of 12 volts and the input drops to 7 volts, the step up part of the module is activated and ensures that the voltage of 7 volts is inverted to the set 12 volts. But if the voltage at the input were to rise to 24 volts, the step down part of the module would come into operation and convert the 24 volts to the set 12 volts.

Specifications:

Type: DSN600AUD Automatic Buck Boost module
Wide Input Range: 3.8 To 32 Volts DC
Wide Output Range: 1.25 to 35 Volts
Efficiency: 94 %
Maximum Power: 3 Ampere (ensure sufficient cooling)
Switching frequency: 400Khz
No-load consumption: 18mA
The higher the voltage, the higher the power
Efficiency: The higher the range, the lower the efficiency
Output Ripple 50mV
Load regulation: +/- 0.5%
Voltage regulation: +/- 0.5%
Workable temperature range: -40 to 85 degrees Celsius

Applicability

These modules are widely used in the car, carevan, boat and truck, for example to keep LED lighting at a stable voltage, but also in other applications to get the most out of a battery.
