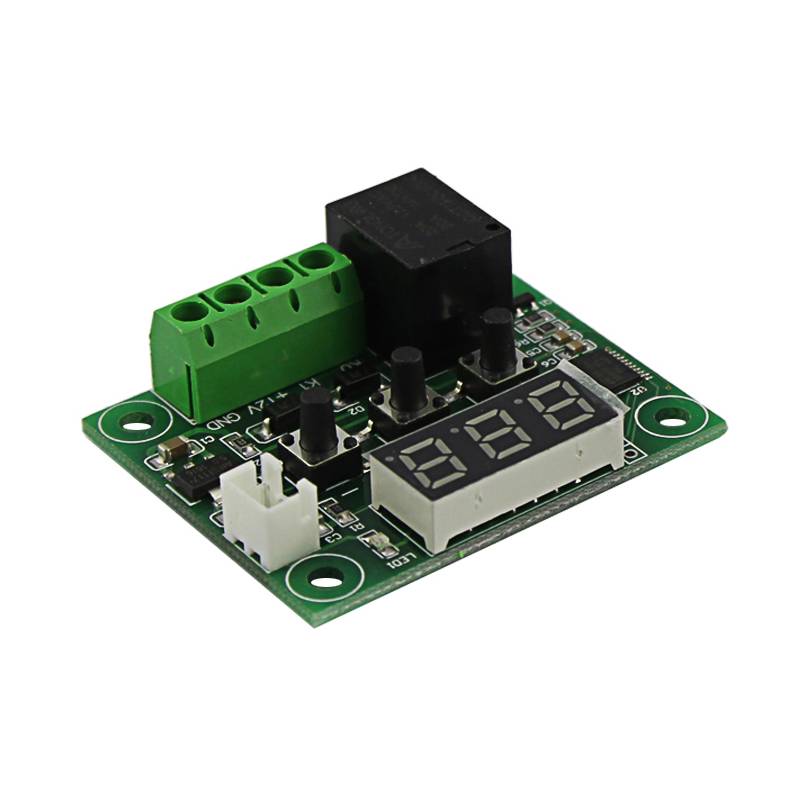

W1209 Mini thermostaat temperatuur Controller
Specification:1.Supply voltage: DC 12V
2.Static current: 35MA, attract current 65MA
3.Output voltage: DC 12V
4.Output power: 10A relay
5.Measurement input: NTC (10K 0.5%) Waterproof Sensor
6.Environmental requirements: -10 ~ 60 °C , Humidity 20% ~ 85%
7.Dimensions: 48 x 40mm
8.Temperature range: -50 ~ +110°C
9.Control accuracy: 0.1°C
10.Hysteresis accuracy: 0.1°C
11.Refresh rate: 0.5S
12.High temperature protection: 0 ~ 110°C
13.Resolution: the resolution is -9.9~99.9, other temperature segment is 1°C
Specification:1.Supply voltage: DC 12V
2.Static current: 35MA, attract current 65MA
3.Output voltage: DC 12V
4.Output power: 10A relay
5.Measurement input: NTC (10K 0.5%) Waterproof Sensor
6.Environmental requirements: -10 ~ 60 °C , Humidity 20% ~ 85%
7.Dimensions: 48 x 40mm
8.Temperature range: -50 ~ +110°C
9.Control accuracy: 0.1°C
10.Hysteresis accuracy: 0.1°C
11.Refresh rate: 0.5S
12.High temperature protection: 0 ~ 110°C
13.Resolution: the resolution is -9.9~99.9, other temperature segment is 1°C
